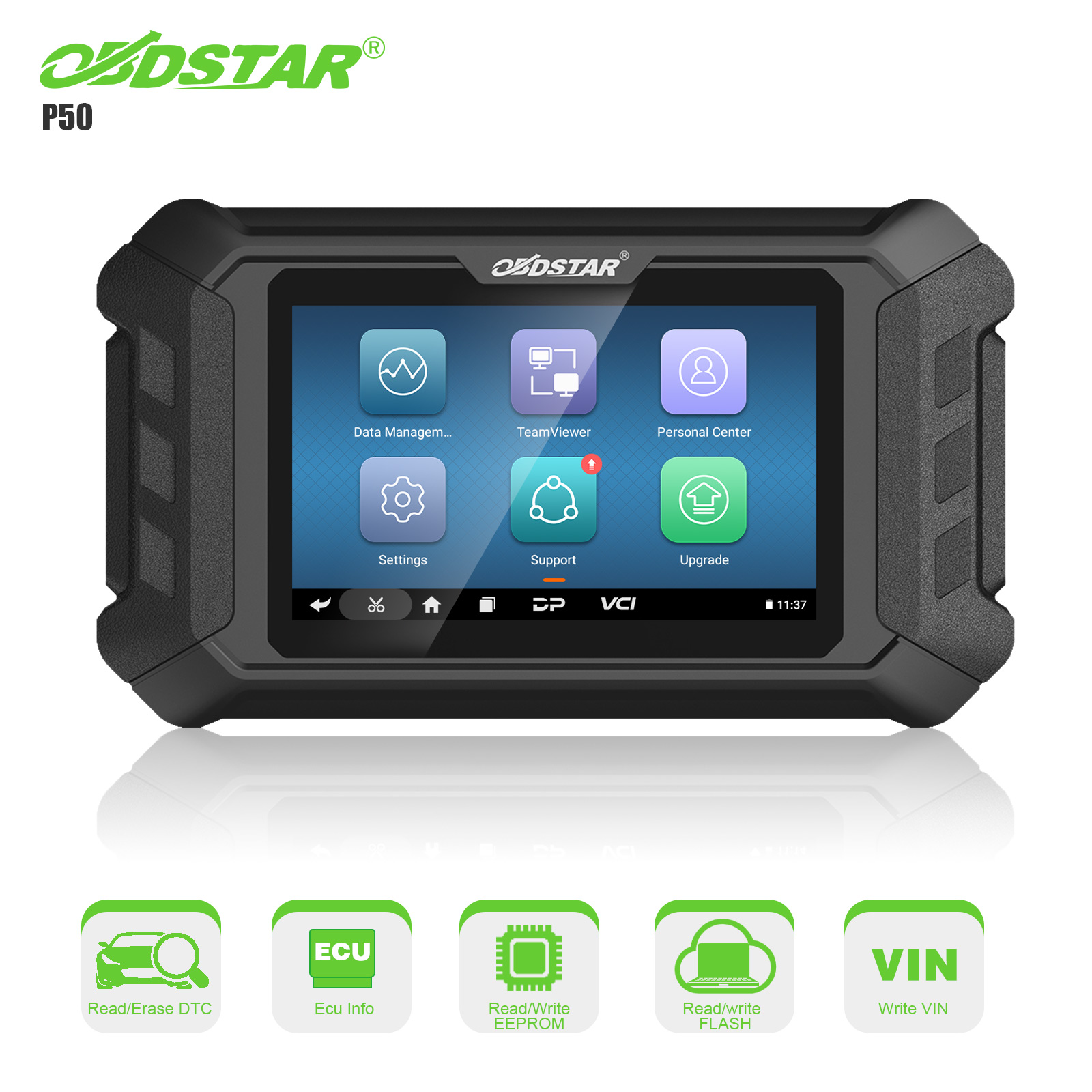

- OBDSTAR P50 is the new generation of intelligent airbag reset equipment of OBDSTAR Technology Co., Ltd. It has powerful function and wide coverage, covering 74 brands and over 9700 ECU part No. and some MCU. It’s based on the RK3128 Quad-Core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch screen, touch sensitive.
Language: English only, can’t change to other languages.
Ship from US/ EU warehouse, fast delivery & no tax to the USA and EU countries.OBDSTAR P50 Basic Functions:
1. Supports one-click airbag reset for 74 brands and over 9700 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. One year update for free. 150 USD for update per year from second year. ( 90 USD for another year of update if you renew it before expires)
6. Supports Hyundai/Kia TC2xxx types bench airbag reset with CAN FD adapter
7. Newly add Battery Reset for Audi/Volvo by BENCHMore functions under developmentOBDSTAR P50 Advanced Functions:
Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU
Battery Reset for Audi and Volvo by BENCHHow to use OBDSTAR P50?
Please register the device before using.
Instructions for registration.
Distributor code: 0086A002.
The general operation steps are as follows:
1. Read the part number—To see whether it reads the correct part number
2. Read fault codes—Check if there is an airbag crash fault
3. Clear the fault code—A few car models’ airbag fault codes can be cleared by cleaning the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the collision record
6. If there is a write VIN function, please write VIN ( Very few Ford and Renault models’ VIN information will be erased when cleaning the fault codes)
7. Clear the fault code
8. Read the fault code—To confirm that the fault has been successfully cleared
OBDSTAR P50 Vehicle Coverage:
1. Supported 74 brands:
ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAOJUN, BENZ, BMW, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD, GMC, GREATWALL, HONDA, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SEAT, SKODA, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW
2. Cover over 9700 ECU part No. (supporting fuzzy search)
3. Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570…
Latest Update:
Airbag Reset V30.46–2023-8-14
Add TOYOTA R7F7016443, R7F7016843 crash record erase and repair comming soon! 2023-07-25
Work with CAN FD adapter.
Battery Reset V30.03 comming soon! 2023-06-28
Airbag Reset V30.34 –2023-02-28
Working with CAN FD Adapter
Airbag Reset V30.32 –2022-12-28
Add Hyundai/ Kia airbag reset, working with CAN FD Adapter
OBDSTAR P50 Specification:
-
Operation system Android 5.1.1 CPU RK3128 quad-core ARM cortex A7 Battery 2600mA, rechargeable polymer lithium battery Extension memory card 32G micro SD (TF) card supported Storage capacity 16GB LCD 5.0 inch LCD resolution 800*480 Touch screen Capacitive touch screen Wifi Supported Working temperature -20℃ ~ 55℃（14℉ ~ 131℉ ） Storage temperature -20℃ ~ 70℃（-4℉ ~ 158℉ ） Weight About 700g Dimension 198mm*115*mm*31mm Package Includes:
1pc x OBDSTAR P50 Main Unit
1pc x Main cable
1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A ChargerOBDSTAR P50 Accessories:
Shipping and delivery Attention:
Flat airmail: 7-18 working days for delivery. To South American and African countries it may take 20-25 working days.
DHL: 7-9 working days for delivery. We usually declare a lower value on a DHL invoice to help with customs clearance. If the address belongs to a remote area, the customer will need to pay a remote handling cost or change shipping method. Please leave a message if you have any special requirements.
YANWEN Express: 7-12 working days for delivery. No tax or remote delivery cost for European Countries.
EMS: 9-12 working days for delivery. To Russian only sent by EMS. For some remote areas, if you do not want to pay a remote fee, we can send it to you by EMS too.
Aramex: 9-12 working day. To most middle east countries. If you do not like this shipping method, please leave a message on your order.
Attention:
If you need YANWEN express shipping or other shipping methods like UPS, TNT, FedEx and so on, or you have special needs for your order, such as a declared name and so on, please leave a message on the order to notify us. Otherwise we will send the order as our usual practice.
As different countries have different import policies, sometimes we will change the shipping method based on the counties and goods.
When you receive the parcel, before you sign for acceptance, please check the package first to make sure the product is correct and undamaged.
After Sale Service:If you have any problems, please do not hesitate to contact us. Please give us your detailed description, or error photo. We will provide the solution or solve it for you by teamviewer. For some special function, you can take the photo or video and then send it to us to check whether you operate it rightly.
