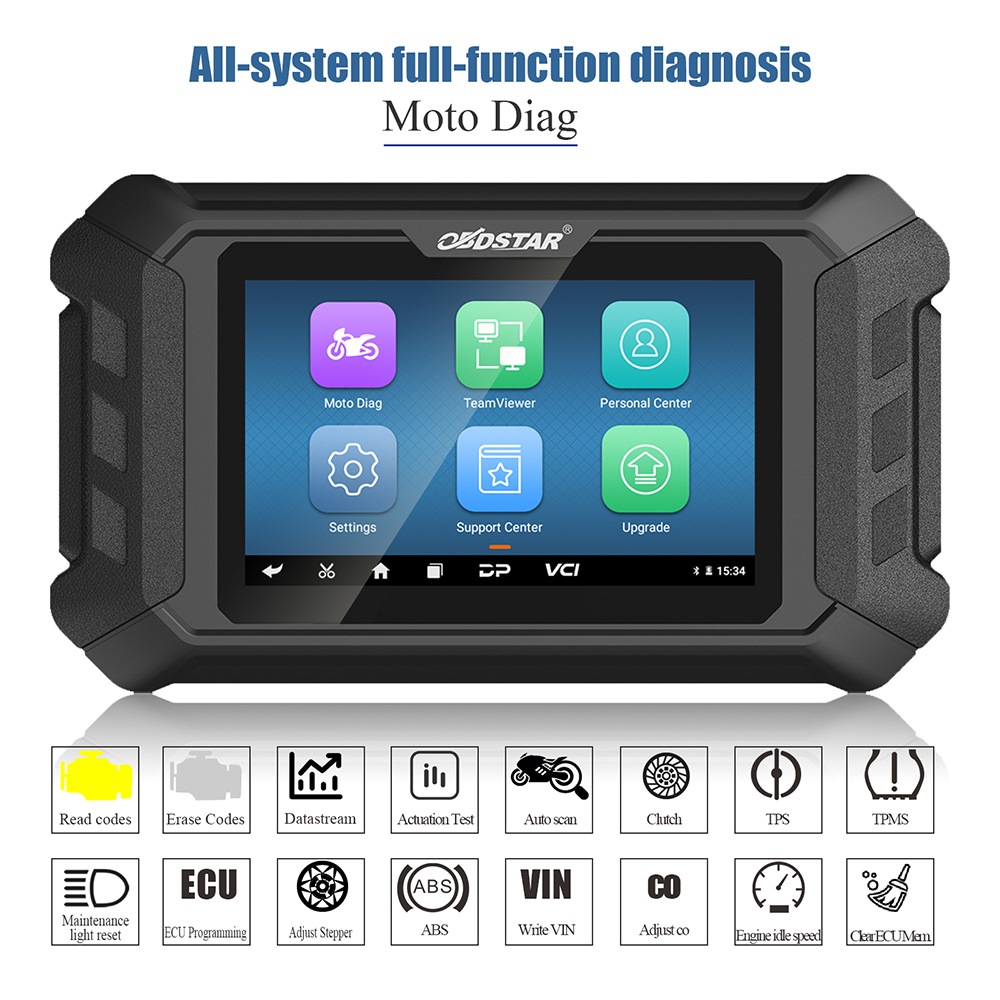

OBDSTAR MS50 Motorcycle Scanner Motorcycle Diagnostic Tool Standard Version 2 Years Free Update Online

$549.99

  1. OBDSTAR MS50 standard version is a new generation of intelligent motorcycle diagnostic equipment tailored for customers.
  2. OBDSTAR MS50 provides complete diagnostic functions including fault codes reading or clearing, data stream reading, action test, setting, coding, etc.;
  3. Contact information:

    Email: service@diabit.co

    If you need any after-sale technical support, please inquiry this the above email.

OBDSTAR MS50 Motorcycle Scanner Motorcycle Diagnostic Tool Standard Version

Please check the Supported list before buying:
OBDSTAR MS50 Standard Version Supported List (2023-06-30)

Warm Notice:
MS50 does not work with Harley, Ducati, unless you buy the OBDSTAR MOTO special kit together, but it supports certain functions only, please check the description as follows.
You can buy the OBDSTAR MOTO special kit to enable the functions of key programming, ECU programming & clone and odometer correction.
It takes 3 working days to be in stock after order.

Top 4 reasons to buy OBDSTAR MS50 Motorcycle Scanner:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

4. Free update for one year. After first year, 100 USD for one year update.



OBDSTAR MS50 Motorcycle Scanner Features:

1. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

2. Provide complete diagnostic functions including fault codes reading or clearing, data stream reading, action test, setting, coding, etc.;

3. Menu Arbitrary selection is more convenient and quick;

4. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

5. One-Click remote function, OBDSTAR technical staff remote assistance;

6. Support most of the Asia and Europe models;

7. New android 5.1.1 operation system;

8. Wi-Fi connection to the internet, one-click software upgrade;

9. Language: English only.



Differences between MS50 standard version & basic version:

1. MS50 standard version supports ECU tuning, while basic version doesn’t.

2. MS50 standard version supports more brands of motorcycles than the basic version, please download the supported list for reference.

Motorcycle/ Snowmobile/ ATV/ UTV supported series:
Asia:

AEON, BAJAJ, BENELLI(DSK), HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

Europe:

APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA

China:
CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, LINHAI, QJBENELLI, SHINERAY, ZONTES

Americas:
ACELLERA

Optional Software Kit:

1. Odometer Recalibration support series (Works with Moto Special Kit)

Europe:

APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas:

BUELL, HARLEY-DAVIDSON

Asia:

HONDA, KAWASAKI, SUZUKI, YAMAHA

China:

HAOJUE, KYMCO

2. Tuning support series (Works with Moto Special Kit)

HONDA

3. Motorcycle key programming support series (Works with Moto Special Kit)

Europe:

APRILIA, PIAGGIO, VESPA

Asia:

HONDA, KAWASAKI, SUZUKI, YAMAHA

4. ECU Flasher support series (Works with Moto Special Kit)

APRILIA, PIAGGIO, VESPA

5. Tuning support series

HONDA

Specifcations

Operation system Android 5.1.1
CPU RK3128 quad-core ARM cortex A7
Battery 2600mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
LCD 5.0 inch
LCD resolution 800*480
Touch screen Capacitive touch screen
Wifi Supported
Working temperature -20℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight About 700g
Dimension 198mm*115mm*31mm

MS50 Function Display

1) Main Page/Brand Supported
MS50 STDMS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD
MS50 STD-harley

MS50 STD

MS50 STD

MS50 STD



2) Help Data/Technical Bulletin/Fault Guidance
MS50 STDMS50 STD

MS50 STD

MS50 STD



3)Supported Systems List/Manual Service Function



MS50 STDMS50 STD

MS50 STD

MS50 STD



4) Manual Maintenance Reset
MS50 STD

5) Diag Socket/Diag Connector Location
MS50 STDMS50 STD



6) Data Flow Text/Waveform Diagram/Instrument Diagram
MS50 STDMS50 STD

MS50 STD



7) Special Function-BENELLI



MS50 STDMS50 STD

8) Special Function/Advanced Function-KTM
MS50 STDMS50 STD

MS50 STD

MS50 STD

MS50 STD

9) Special Function/Systems List-PIAGGIO



MS50 STDMS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD
10) Special Function-VESPA
MS50 STD
11) Special Function-HONDA



MS50 STDMS50 STD

MS50 STD

MS50 STD

12) Special Function/Advanced Function-KAWASAKI



MS50 STDMS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD

MS50 STD



13) Special Function/Auto Scan-YAMAHA

MS50 STD

MS50 STD

Comparison Between MS50 Standard Version & MS50 Basic Version

22090716625330081287

Comparison: MS80 vs MS50

Item MS80 MS50
Picture  2020122208741715  2020122208741716
Diag Cable High-Quality ,low price High-Quality ,low price
Main machine 8-inch Android tablet 5-inch Android tablet,OBD charge
Plastic Cover Industrial Design Industrial Design
Smart switch pin Highly integrated diagnostic connector Highly integrated diagnostic connector
Diag Connector OBD adapter, no need to disassemble OBD adapter, no need to disassemble
Operation System Android Android
Wifi one button click one button click
Language English and more local language English and more local language
Remote assistance Yes, engineer can assistant via remote control software Yes, engineer can assistant via remote control software
Immobilizer Europe TRIUMPH
GILERA
PEUGEOT
PIAAGIO
DUCATI
VESPA
America HARLEY
Motorcycle diagnosis Asia HONDA
KAWASAKI
KYMCO
SUZUKI
SYM
YAMAHA
MONTESA
PGO
HARTFORD
AEON
BENELLIDSK
Europe APRILIA
BENELLI
BMW
DUCATI
KTM
PIAGGIO
TRIUMPH
VESPA
MALAGUTI
GASGAS
GILERA
GUZZI
AGUSTA
DERBI
America HARLEY
INDIAN
VICTORY
BRP
OBD OBD-II OBD
Motorboat diagnosis Asia HONDABOAT
Comparison of accessories
M001 Main Cable
M002 Power Cable
M002A  GND
M003A Multi functional jumper
M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
M005 KAWASAKI
M006 KAWASAKI
M012 SUZUKI
 M015A HONDA/HONDA MONTESA
M018 YAMAHA
M019 KTM
M021 AEON/BENELLI/BENELLI DSK
M026 SYM
M027 KYMCO/KAWASAKI
M028 pgo
M030 HARDFORD
M034 HARLEY-DAVIDSON
M037 DUCATI
M040 BMW
M041 EURO V
M042 INDIAN/VICTORY
M043  BRP
P001 IMMO KIT(Optional)
12V2A CHARGER
Support system 1. Comparable to the original factory
2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
1. Comparable to the original factory
2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.) Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location
Diagnostic connector Display
Technical Bulletin
Fault Guidance
Data Flow Text/ Waveform Diagram
Instrument Diagram
Any menu back
Interactive Circuit diagram
Components Description

Comparison Among MS50 Standard Version, MS50 Basic Version, MS50 Standard Version+Special Kit and MS50 Basic Version+Special Kit
OBDSTAR MS50 comparison
OBDSTAR MS50 comparison

OBDSTAR MS50 Latest Updates:
HAOJUE V30.03 DIAG Upgrade

OBDSTAR MX80/MS50 HAOJUE DIAG UPDATE
Motorcycle Diag Upgrade Announcement of April
OBDSTAR MS80/MS50 Motorcycle Diag Upgrade Announcement of April 2021

OBDSTAR MS80/MS50 Motorcycle Diag Upgrade Announcement of April 2021
Some models are available for OBDSTAR MS80 only, please check the car list.

1.Details Added:

Add standing assist control unit;

Add electric power steering unit;

Add 21 car models such as Aerox, D’elight and more.

2.Highlights Added:

Add ISC correction value erasure;

Add air-fuel control learning data erasure.

3.Details Optimized:

Optimized YAMAHA software.

The software maybe different due to configuration, more details please contact Customer Service team.

Packing List:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NOO4 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter

22090716625333003676

Shipping and delivery Attention:

Flat airmail: 7-18 working days for delivery. To South American and African countries it may take 20-25 working days.

DHL: 7-9 working days for delivery. We usually declare a lower value on a DHL invoice to help with customs clearance. If the address belongs to a remote area, the customer will need to pay a remote handling cost or change shipping method. Please leave a message if you have any special requirements.

YANWEN Express: 7-12 working days for delivery. No tax or remote delivery cost for European Countries.

EMS: 9-12 working days for delivery. To Russian only sent by EMS. For some remote areas, if you do not want to pay a remote fee, we can send it to you by EMS too.

Aramex: 9-12 working day. To most middle east countries. If you do not like this shipping method, please leave a message on your order.

Attention:

If you need YANWEN express shipping or other shipping methods like UPS, TNT, FedEx and so on, or you have special needs for your order, such as a declared name and so on, please leave a message on the order to notify us. Otherwise we will send the order as our usual practice.

As different countries have different import policies, sometimes we will change the shipping method based on the counties and goods.

When you receive the parcel, before you sign for acceptance, please check the package first to make sure the product is correct and undamaged.
After Sale Service:

If you have any problems, please do not hesitate to contact us. Please give us your detailed description, or error photo. We will provide the solution or solve it for you by teamviewer. For some special function, you can take the photo or video and then send it to us to check whether you operate it rightly.

Contact information:

Email: service@diabit.co

If you need any after-sale technical support, please inquiry this the above email.

If you have any problems, please do not hesitate to contact us. If your shipping method is fast shipping, please kindly give us your phone number for shipping.
