OBDSTAR X300 DP PLUS C Package Full Version 8inch Tablet Auto Key programmer Upgraded Version of X300 DP


Get the ultimate auto key programming tool with the OBDSTAR X300 DP PLUS C Package Full Version. This 8-inch tablet is packed with advanced features and is the upgraded version of the X300 DP.

Category: Tag:
OBDSTAR X300 DP PLUS C Package Full Version 8inch Tablet Auto Key programmer Upgraded Version of X300 DP
Code Reader
Applicable Models:
for most cars
Place of Origin:
Guangdong, China
Brand Name:
Hua Shi
Model Number:
12 Months
Product Name:
Operating System:
Android 5.1.1
Exynos4418 Dual Core ARM Cortex A9 1.4GHz
3700mA, rechargeable polymer lithium battery
Storage capacity:
8.0 inch
Touch screen:
Touch screen



2020 OBDSTAR X300 DP PLUS C Package Full Version 8inch Tablet Auto Key programmer Upgraded Version of X300 DP(C Package)

Technical Parameter:

Operation system: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Memory capacity:1GB
Storage capacity: 32GB
LCD: 8.0 inch
LCD resolution: 1280*800
Touch screen: Capacitive touch screen
Camera: 5 mega rear view camera
Wi-Fi: supported
Working temperature: -10℃ ~ 55℃(14℉ ~ 131℉ )
Storage temperature: -20℃ ~ 70℃(-4℉ ~ 158℉ )
Weight: about 1.0 Kg
Dimension: 254mm*174*mm*35mm

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, andproviding precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 DP Plus Hardware Features:

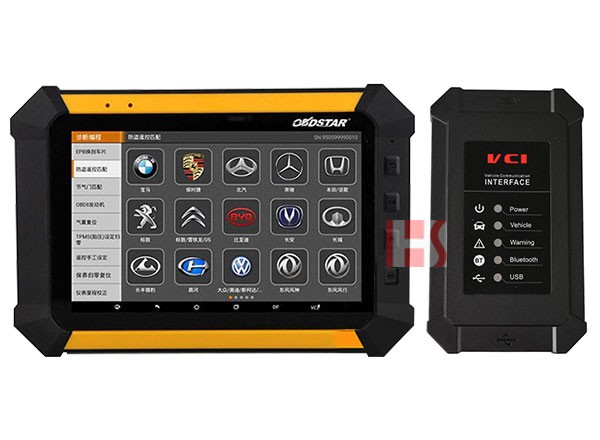

1. The built-in VCI box offers more stable communication.

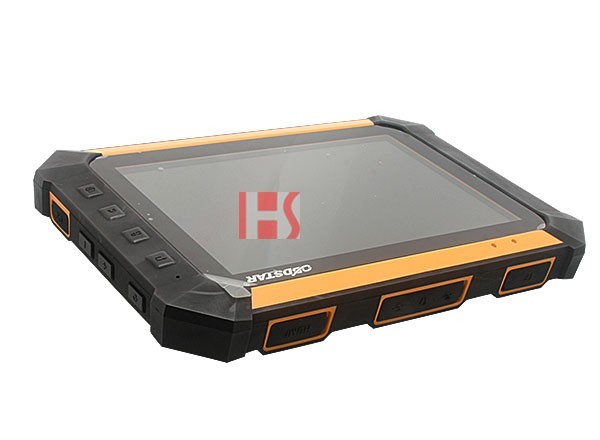

2. The 8″ touch screen offers better vision experience.
3. Allow users to charge by the OBD port of car. Not like the X300 DP 7″ Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve

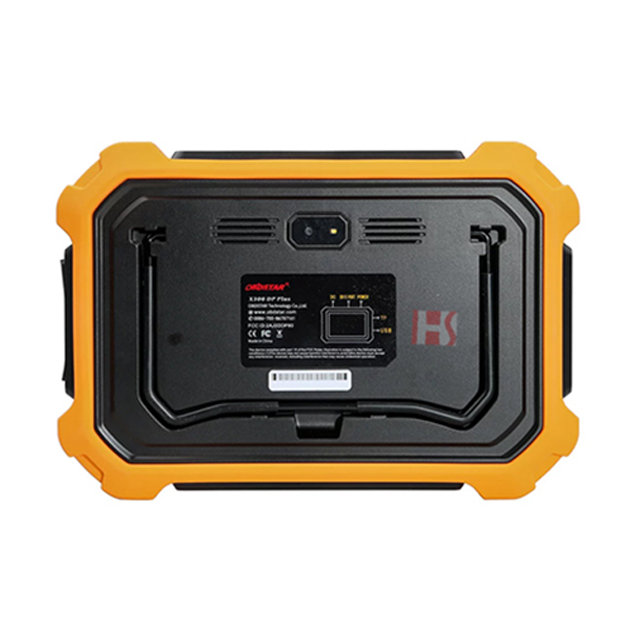

6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toy-ota Lex-us Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Au-di 4th / 5th IMMO programming and other cars e.g Porsche, B-M-W , Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:

Software Configuration
X300 DP Plus Package
Immobilizer / Remote programming
European cars

add NEC 24C64 2014-key programming.

Add FEM/BDC key programming, ISN code reading etc.
Asian cars

Add 47/8A/46 smart key pin code reading

For Middle east cars, it adds H chip all keys lost (Immo box reset)
North American cars
Add Fo-rd after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln
MKZ, MKC and Continental 2015 – etc.

Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze
Cluster Calibration
All cars cluster calibration
4-system diagnosis
Engine, Transmission, ABS, airbag reset
OBDII Diagnosis
Full functions diagnosis
Full-system all-cars diagnosis
Special function
Oil service reset
Reset the Oil Service Light on
Manual remote setting
Some cars only supports manual remote setting.
ABS bleeding
After replace the ABS pump and related components.
Battery matching
After the battery is changed, you need to match the battery.
ECU programming
The car with EPB replace brake pads
Electronic Parking Brake release
Throttle programming
Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.
TPMS reset
Used for reset after tire pressure alarm
Steering angle reset
Replacement of data lost after steering angle change or power off
OBDII Engine
Used to diagnose the car with OBD protocol.
DPF Regeneration
Diesel Particulate Filter Operational
Injector coding
Used to match and code the injector after replacement
Suspension match
Used to match and set the suspension after adjusting.
Gear learning
Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this
CVT learning
Used to reset the learning value after maintenance of CVT transmission
Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft
Key Renew
Renew the used keys to solve the problem that used keys cannot be matched to other models
Steering angle repair
Used for the repair of lost data of vehicle steering angle sensor
ECU Clone
Used for copying the program when replacing the new/second-hand computer.
Switch activation
Airbag reset
Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused

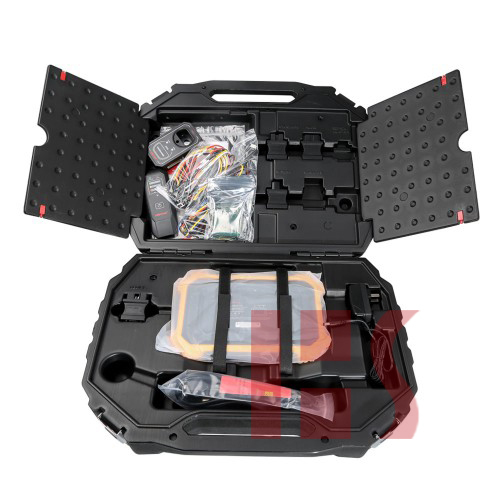

P001 Programmer unit
C001 circuit board
C002 circuit board
W001 data cable
W002 data cable
W003 data cable
Toy-ota smart key emulators
Remote Tester
Anti-theft Induction coil
Used to test if the coil can send out the transmit signal.

OBDSTAR X300 DP Plus Software Features:

1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won’t need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.2. Switch activation function
Nowadays, many car models’ secondary power supply of the dashboard or Au-dio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / Au-dio equipment, the main unit is out of the CANBUS network so it maybe won’t boot. X300 DP plus ” switch activation function” can emulate the CANBUS communication to active the power supply of dashboard / Au-dio so that it can enter the boot status, then it will test and verify the dashboard and the Au-dio, also the technician can save money avoiding to purchase many the boot vplatform and cables of kinds of car models.

3. Adds the “Help” function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.
4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.

10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.
