ECU Bench Cables OBDSTAR P003 KIT Adapter OBDSTAR X300

OBDSTAR P003 Kit working with OBDSTAR IMMO series tablets (eg:OBDSTAR X300DP Plus, X300 Pro4 ), is designed for reading BOSCH ECU
data, CS, Pincode ect., including for Audi, for Citroen, for DS,for Mahindra, for Peugeot,for Skoda,for SEAT,for Volkswagen etc.. More models are in
development.

OBDSTAR P003 Kit Highlights:

1.Portable Design
2.Easy Operation
3.High Performance

Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC value
2. Bosch MED17.4.4 reading eeprom , PinCode
3. Bosch EDC17C60 reading eeprom , PinCode
4. Bosch MD1CS018 reading eeprom, PinCode
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash



OBDSTAR P003 Kit Supported ECU list:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766),
MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5
HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797),
ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro
6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

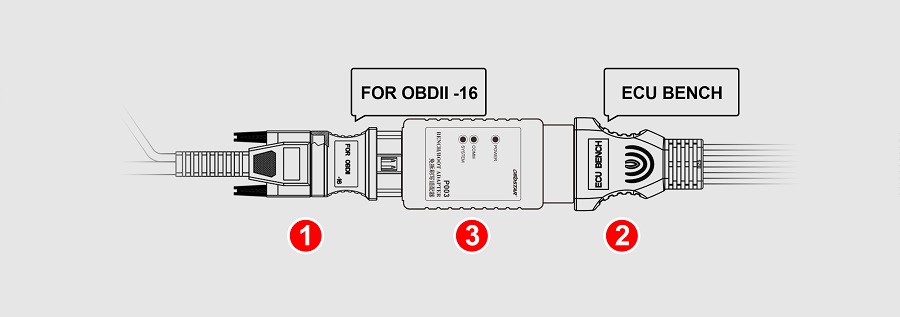

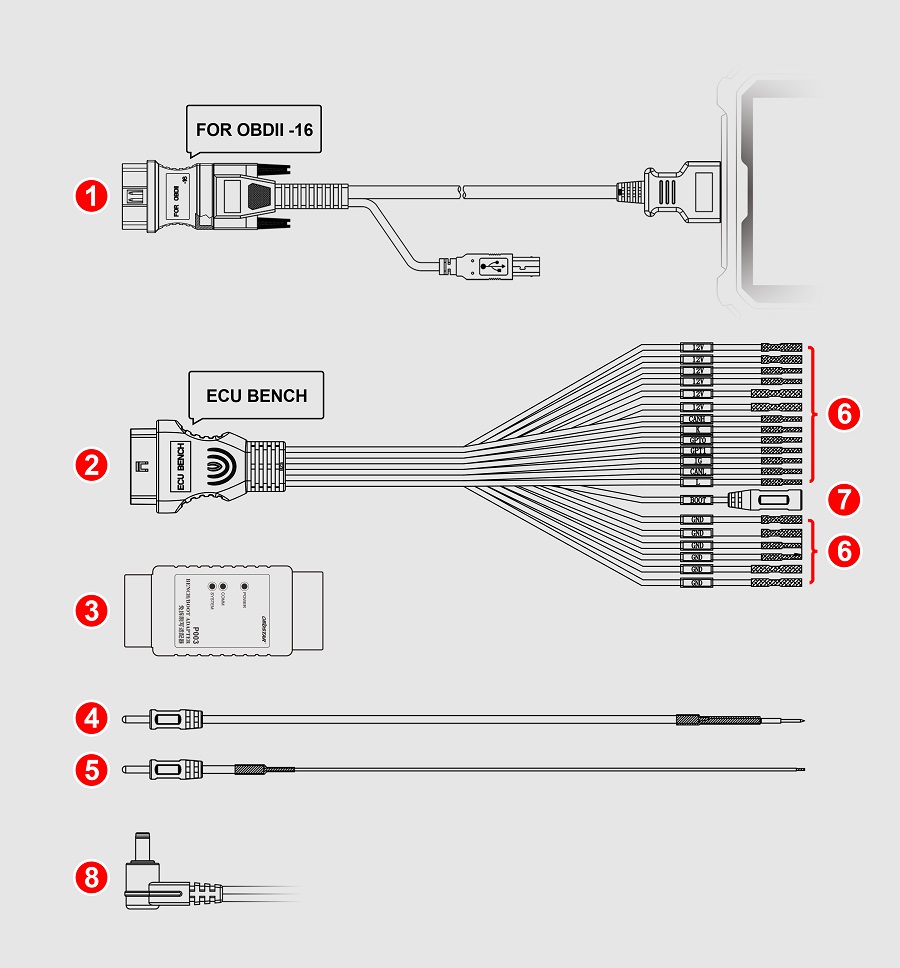

OBDSTAR P003 Kit Overview:

1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)
3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power

OBDSTAR P003 KIT Package:

1. P003 adapter
2. ECU BENCH cables
