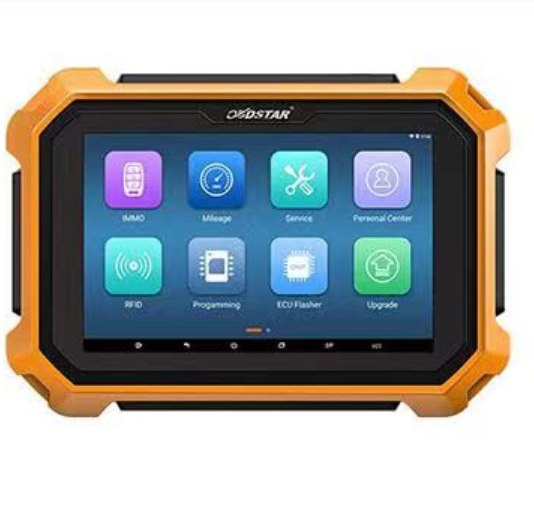

Best Sale OBDSTAR 300DP Plus Immobilizer Key Programmer
Overview
Type:
Voltage:
Power:
Place of Origin:
Brand Name:
Model Number:
Warranty:
Product Name:
Operation system:
CPU:
Battery:
Extension memory card:
Storage capacity:
LCD:
LCD resolution:
Touch screen:
-
capacitive touch screen
Weight:
Name : OBDSTAR 300DP Plus Key Master
This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
Hardware Advantages of OBDSTAR 300DP :
1. Built-in VCI box
2. 8-inch touchscreen
3. Charge directly via OBD interface
4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design: prop on the steering wheel or stand on the table
7. With Toyota simulate key 1
8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Add the clip of reading SOP 8PIN EEPROM
10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
Software Advantages of OBDSTAR 300DP :
IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming
Cluster Calibrate: wild vehicle coverage, pls check the car list
Diagnosis: realize all vehicle systems diagnosis
Special Functions of OBDSTAR 300DP :
TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset
ECU Clone for OBDSTAR 300DP :
1. ECU Clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!
3. Three features for ECU Clone:
A. Free of 4S online:
break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU
Switch Activation Function
(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)
Add “Help” Functions
1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
2. Carlist and upgrade announcement, all details are available on the device
3. Customers can look up the features or uniquely support functions on the device
4. Help notes: built-in help notes for each model or function
5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient
TECHNICAL PARAMETER for OBDSTAR 300DP :
Operation system: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Memory capacity: 2GB
Storage capacity: 32GB
LCD: 8.0 inch
LCD resolution: 1280*800
Touch screen: Capacitive touch screen
Camera: 5 mega rear view camera
Wi-Fi: supported
Working temperature: -10℃ ~ 55℃(14℉ ~ 131℉ )
Storage temperature: -20℃ ~ 70℃(-4℉ ~ 158℉ )
Weight: about 1.0 Kg
Dimension: 254mm*174mm*35mm
CONFIGURATIONS for OBDSTAR 300DP :
A Package:
Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)
B Package:
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)
C Package:
Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester).

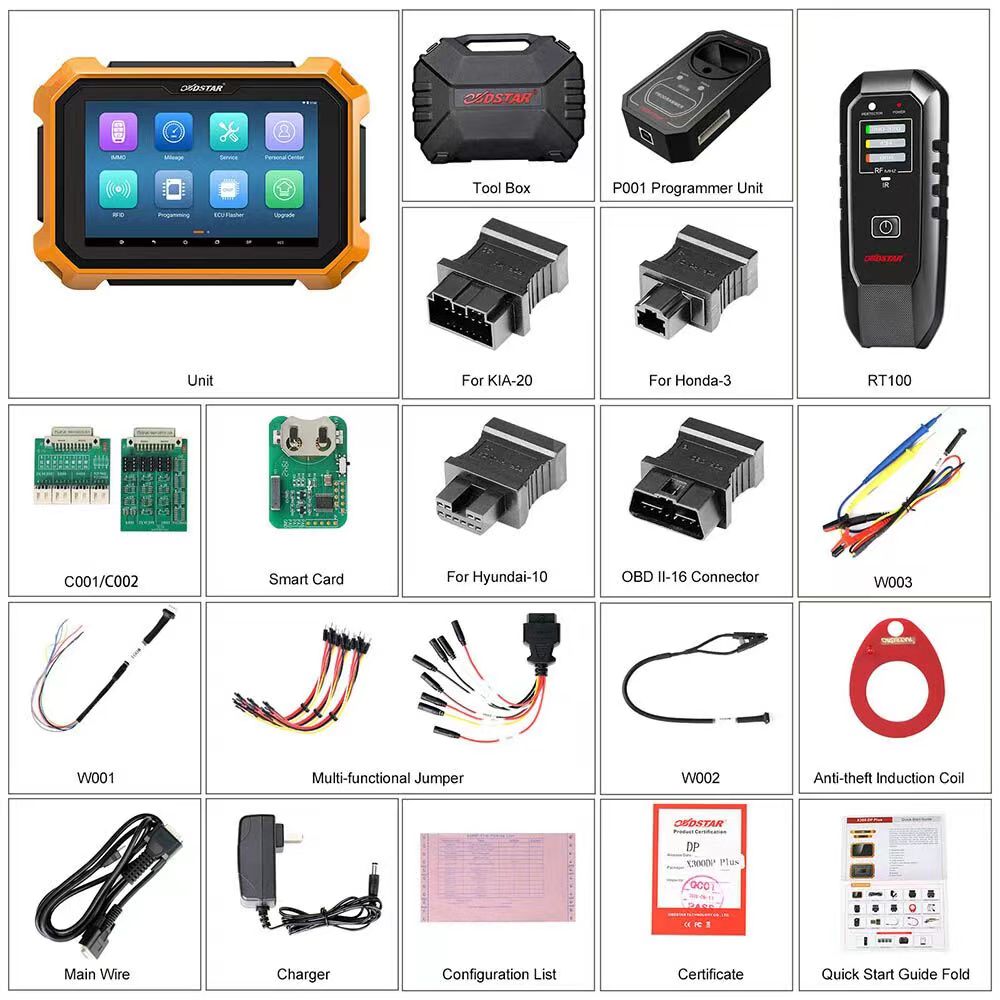

Packing list:
Key Master DP Plus Unit |
Main Wire |
12V2A DC Charger |
KIA-20 |
OBD II-16 Connector |
HAIMA-17 |
HONDA-3 |
HYUNDAI/KIA-10 |
IMMO Induction Coil |
Muti-functional Jumper |
P001 Programmer Unit |
C001/C002 Circuit Board |
W001 |
W002 |
W003 |
RT100 |
TOYOTA Simulation Smart Key 1 |
Configuration List/Certificate/Quick Start Guide Fold |
